Municipal Irrigation 3 Existing Reservoir Rehabilitation - ALFalah City
Rehabilitation of 3 existing municipal irrigation reservoirs including removal of failed epoxy lining, concrete repair, leak treatment, surface preparation, and application of a 2 mm pure polyurea protective lining system
Project overview
Rehabilitation of 3 existing recycled water irrigation reservoirs in Al Falah City, Abu Dhabi, including removal of deteriorated epoxy lining systems, concrete repair, leak treatment, surface preparation, and installation of a seamless pure polyurea protective lining system.
The challenge
The existing epoxy coating system showed signs of deterioration, cracking, debonding, and water leakage in multiple areas. Long-term exposure to moisture, operational conditions, and substrate movement affected the performance of the existing lining system
Existing condition

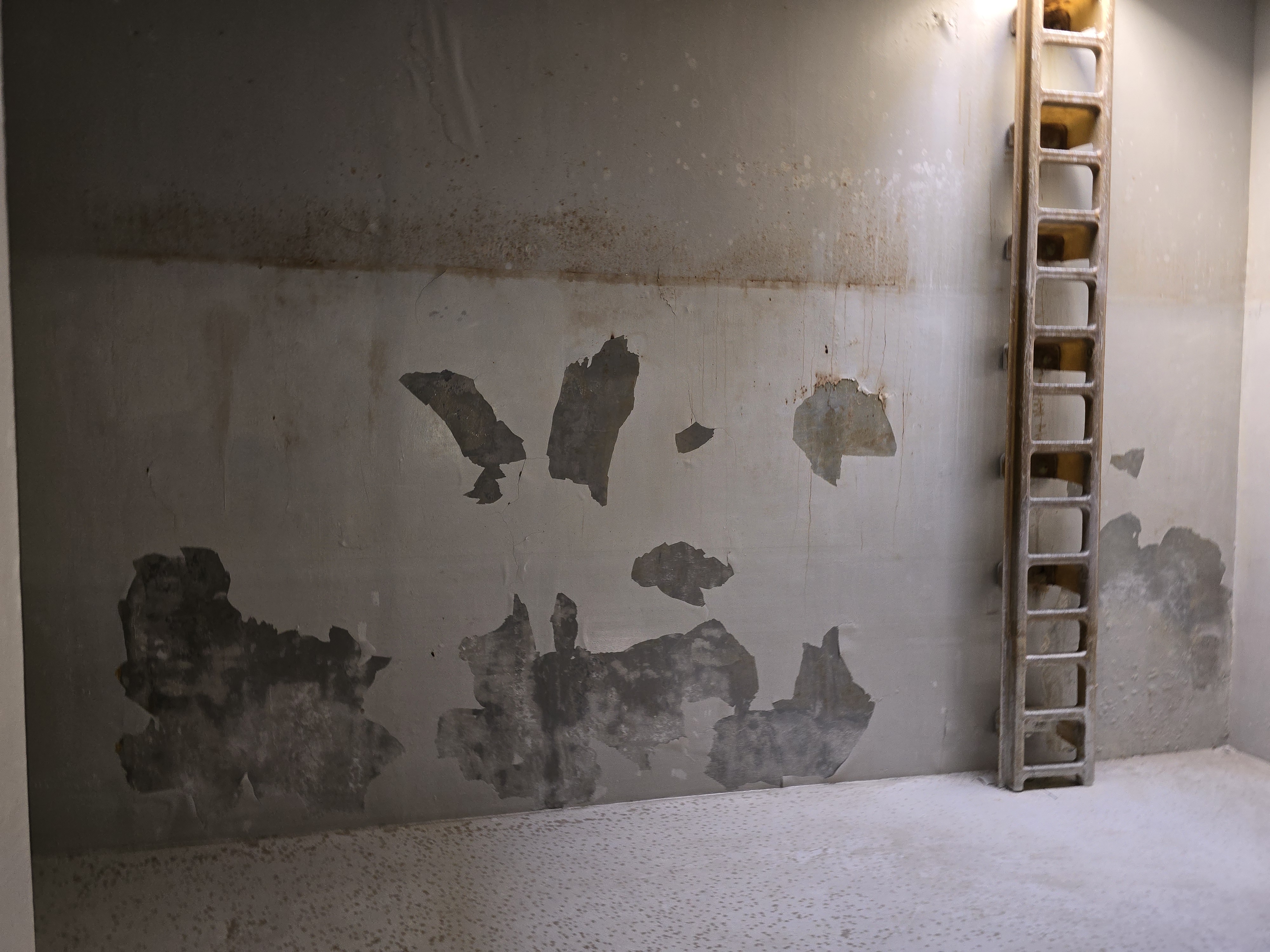

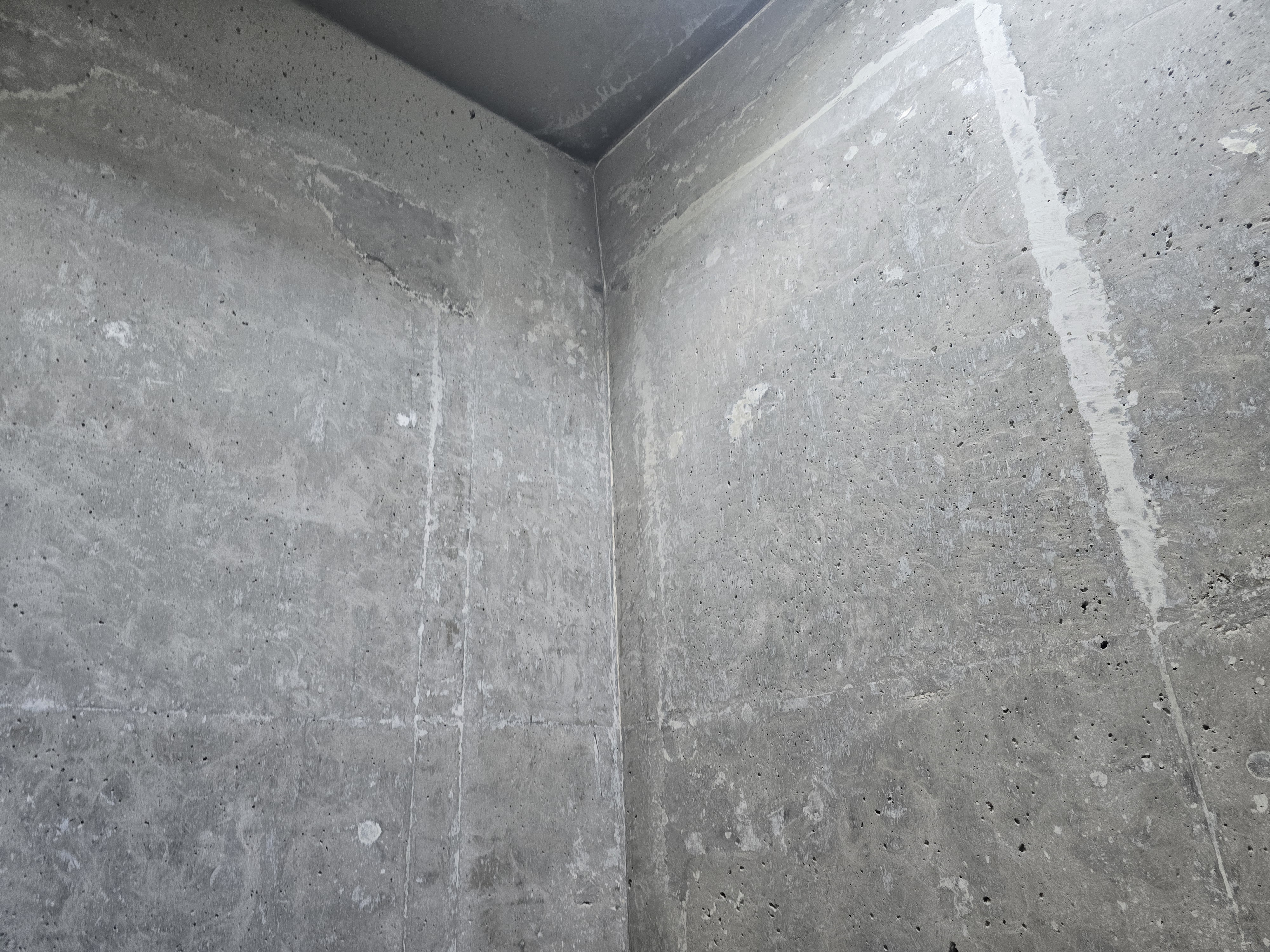

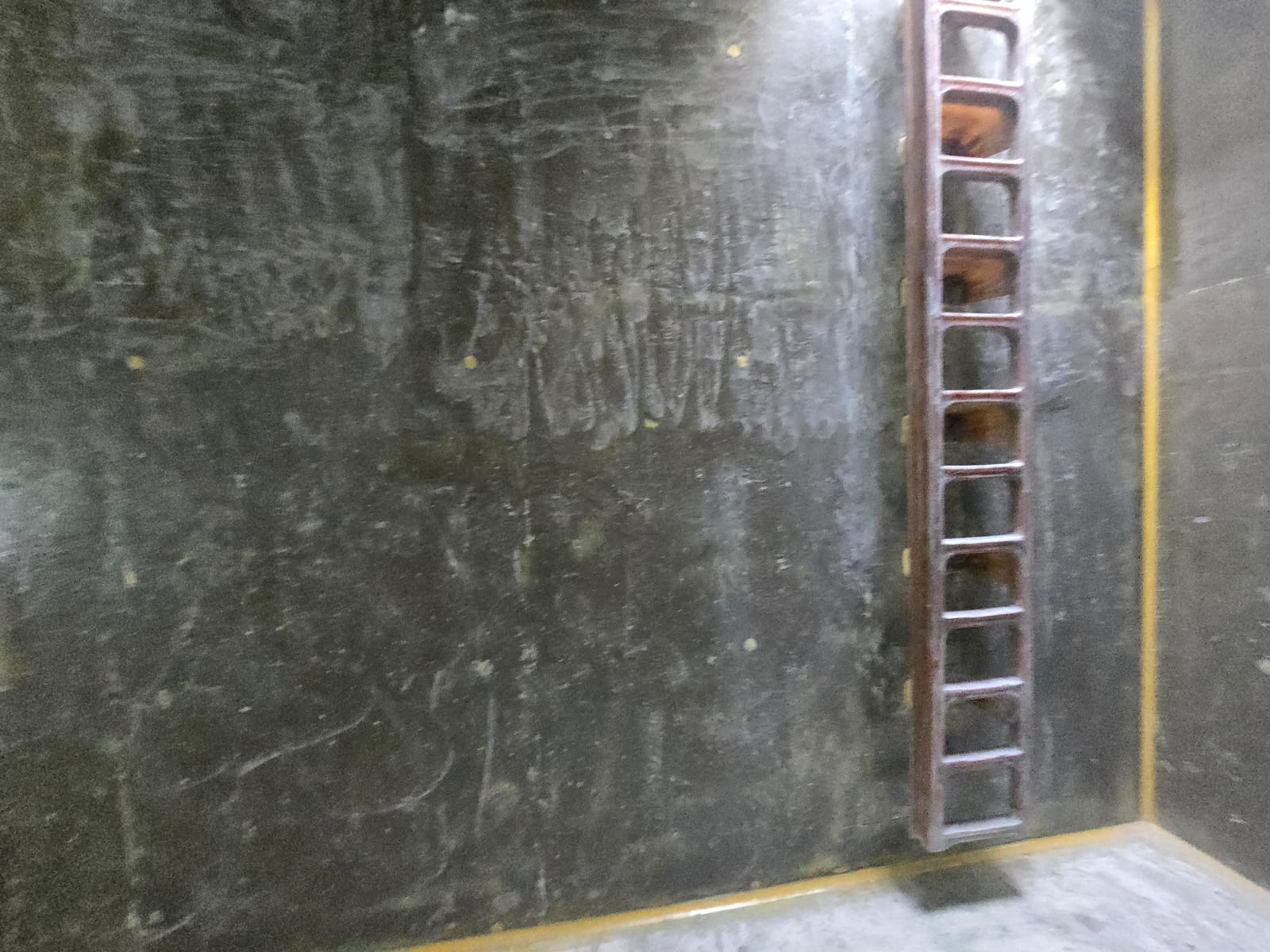

Existing internal epoxy coating system with localized coating failure, cracks, debonded areas, water leakage points, and damaged concrete surfaces.
Our approach

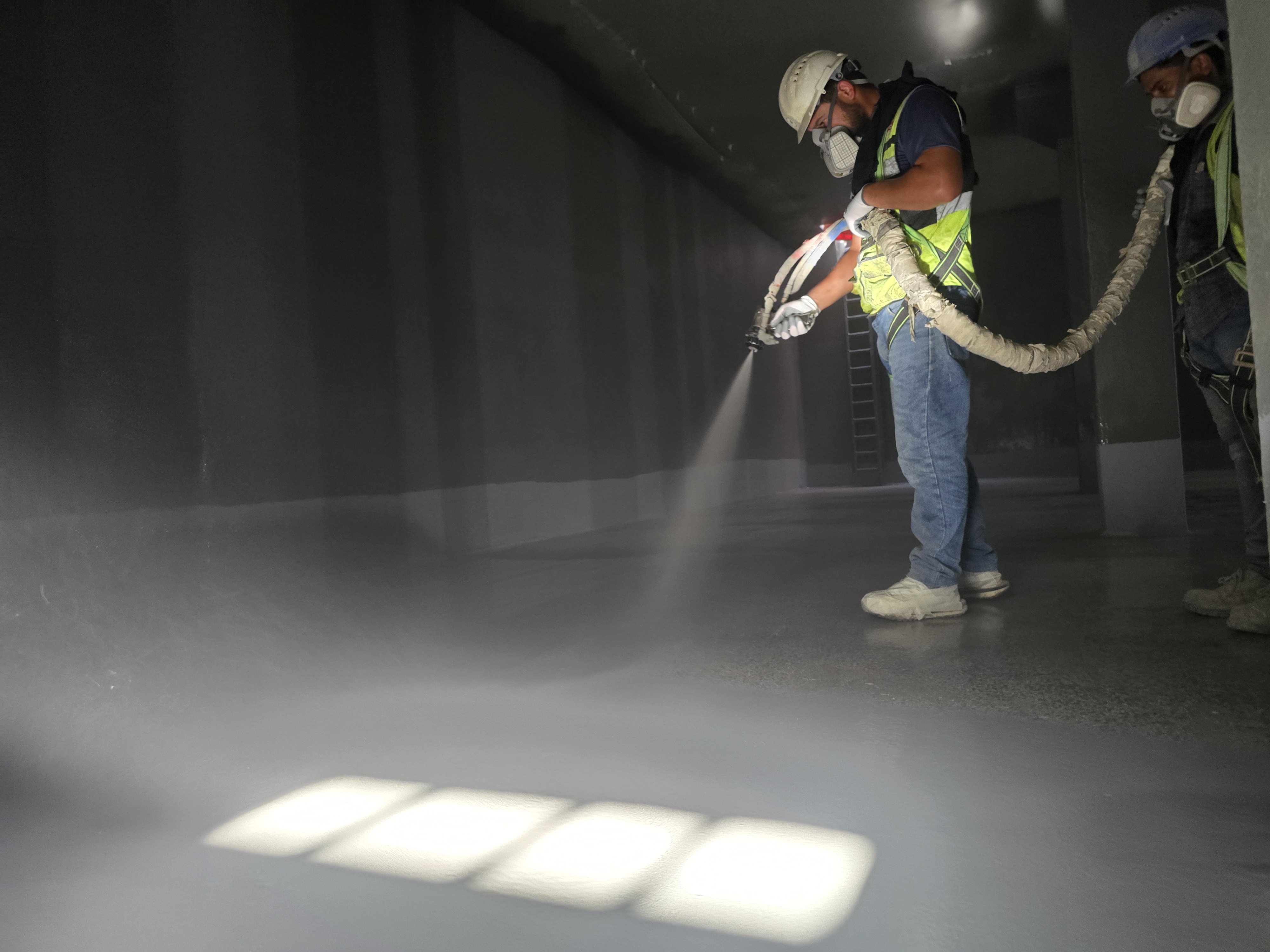

Application of a pure polyurea waterproofing and protective lining system following substrate rehabilitation, crack treatment, leak sealing, and surface preparation works.
Execution methodology

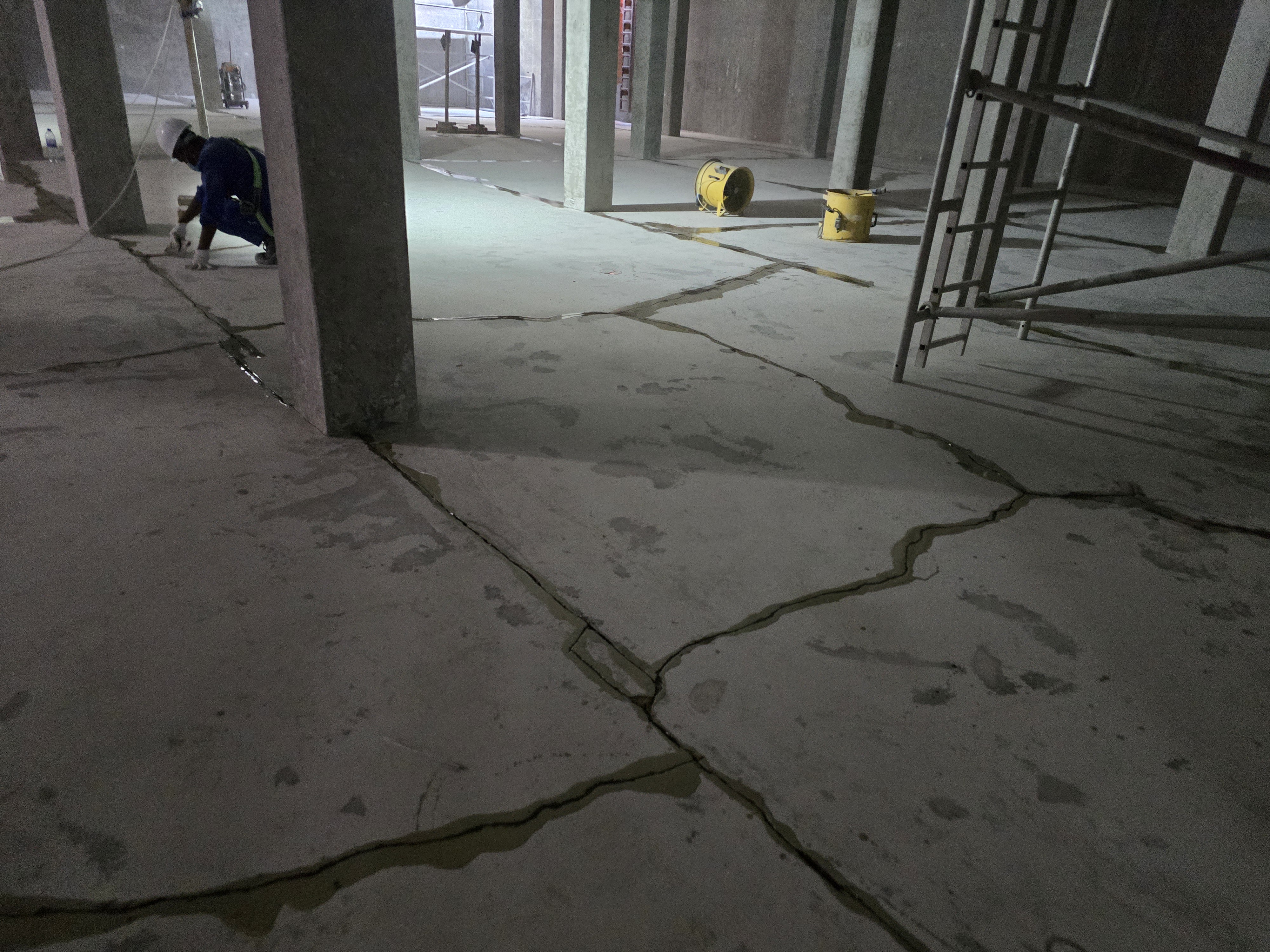

Removal of failed epoxy coating and weak surface areas Concrete surface preparation and profiling Crack repair and water leak sealing treatment Concrete rehabilitation and surface leveling Primer and filler application Detailing of joints, penetrations, and critical areas Application of 2 mm hot spray pure polyurea lining system Final QA/QC inspection and testing
Quality control & verification

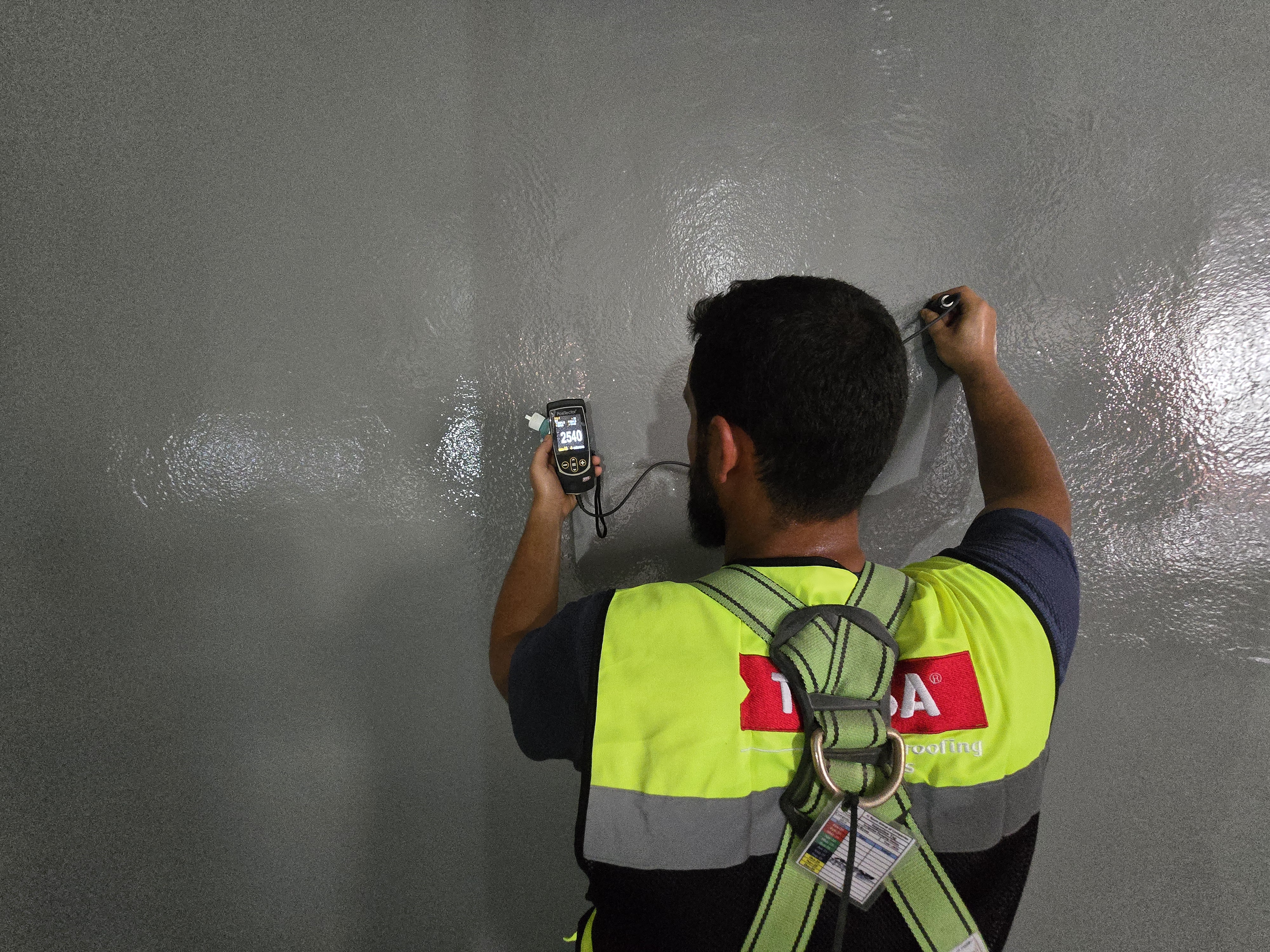

Surface preparation inspection Moisture and substrate condition checks DFT measurement Visual inspection Adhesion verification Final waterproofing inspection
System specification
- System

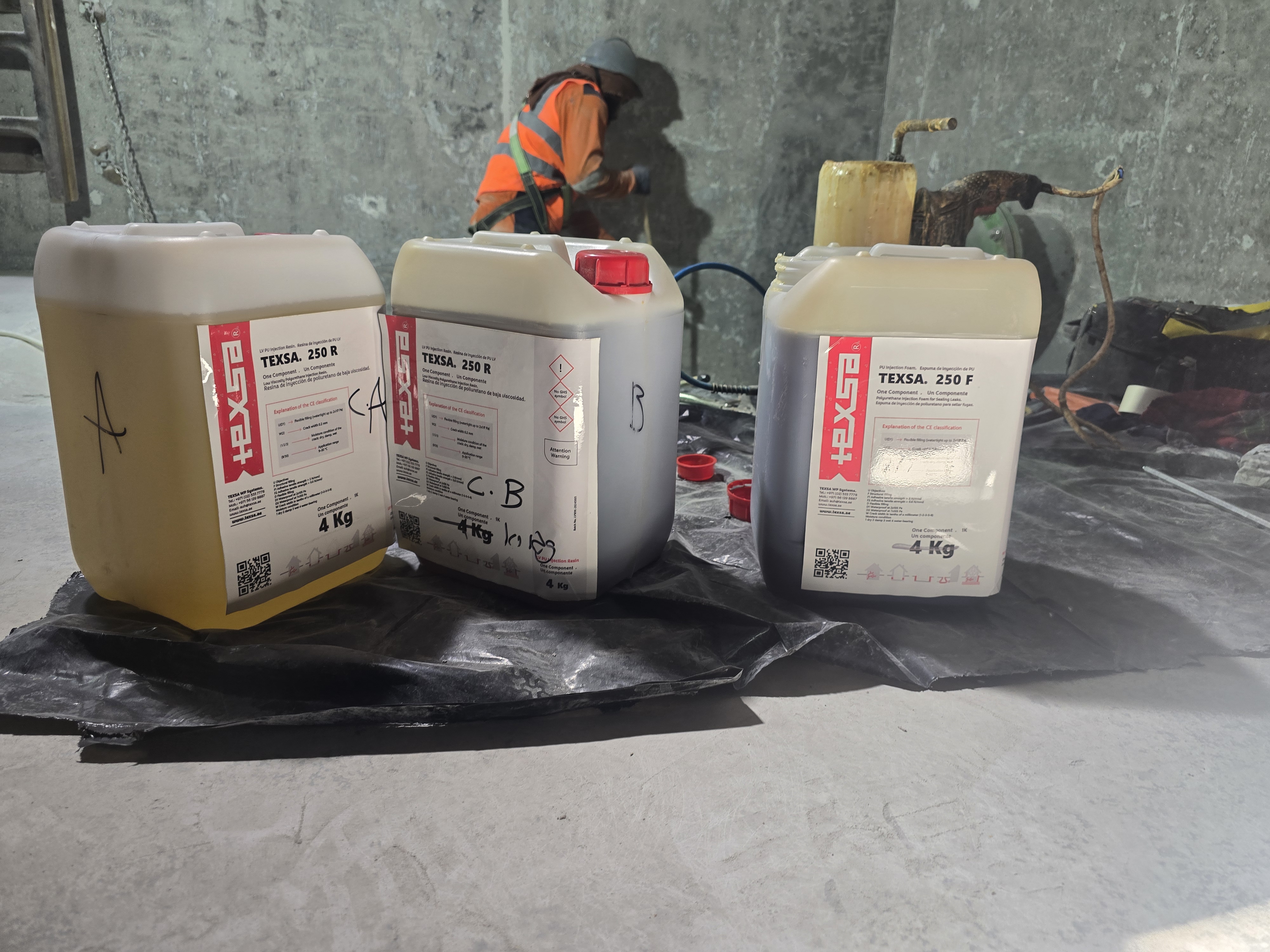

- Injection System PU leak sealing injection system Crack Repair Structural crack repair and treatment system Concrete Repair Polymer-modified concrete repair materials Protective Lining Hot spray pure polyurea coating system
- Area
- 21,000 m²
- Duration
- 12 weeks
- Sector
- Infrastructure
- Service
- Waterproofing
- Location
- Abu Dhabi, UAE
- Year
- 2024
- Client
- Abu Dhabi City Municipality
Before / after

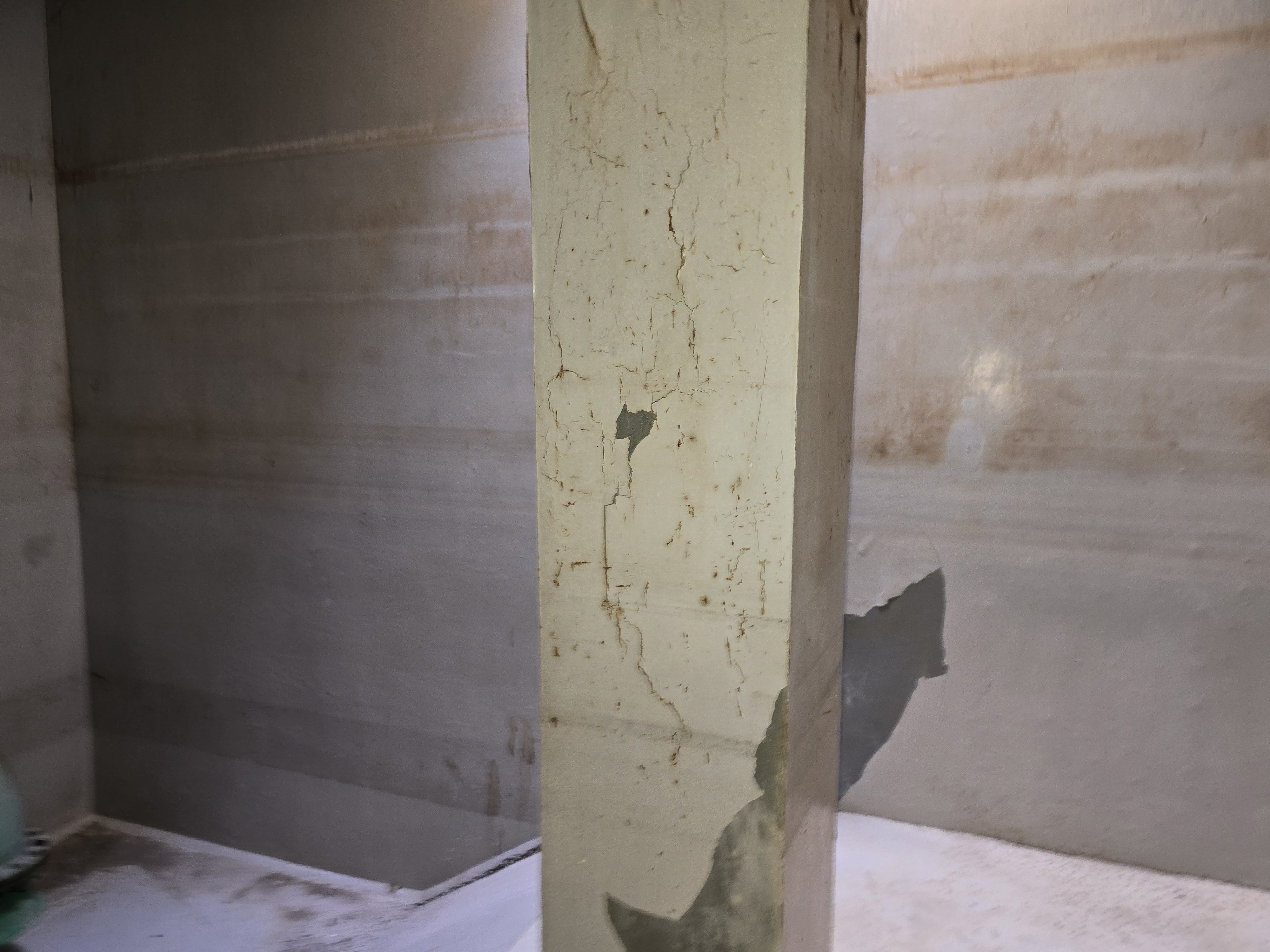

Before

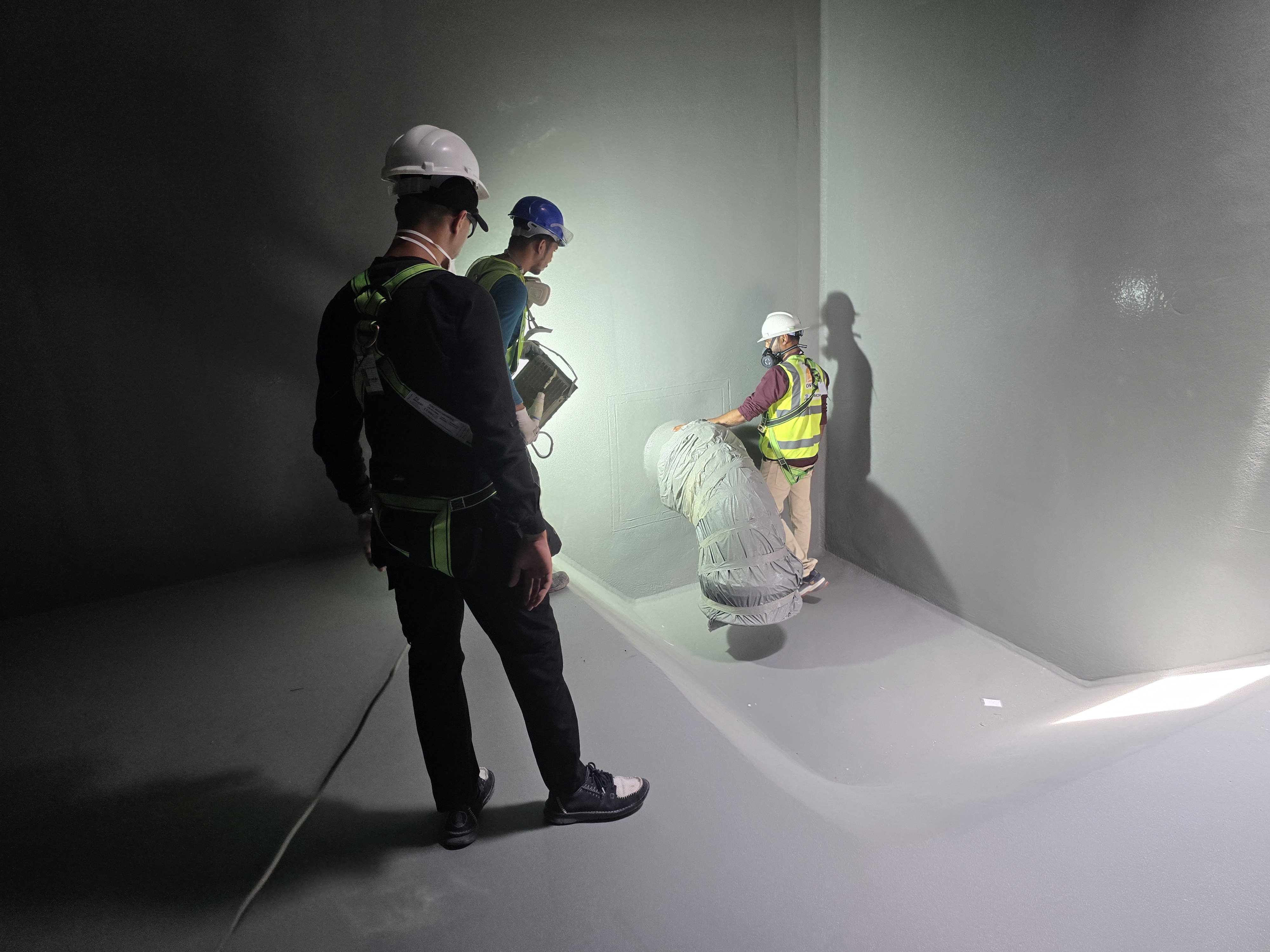

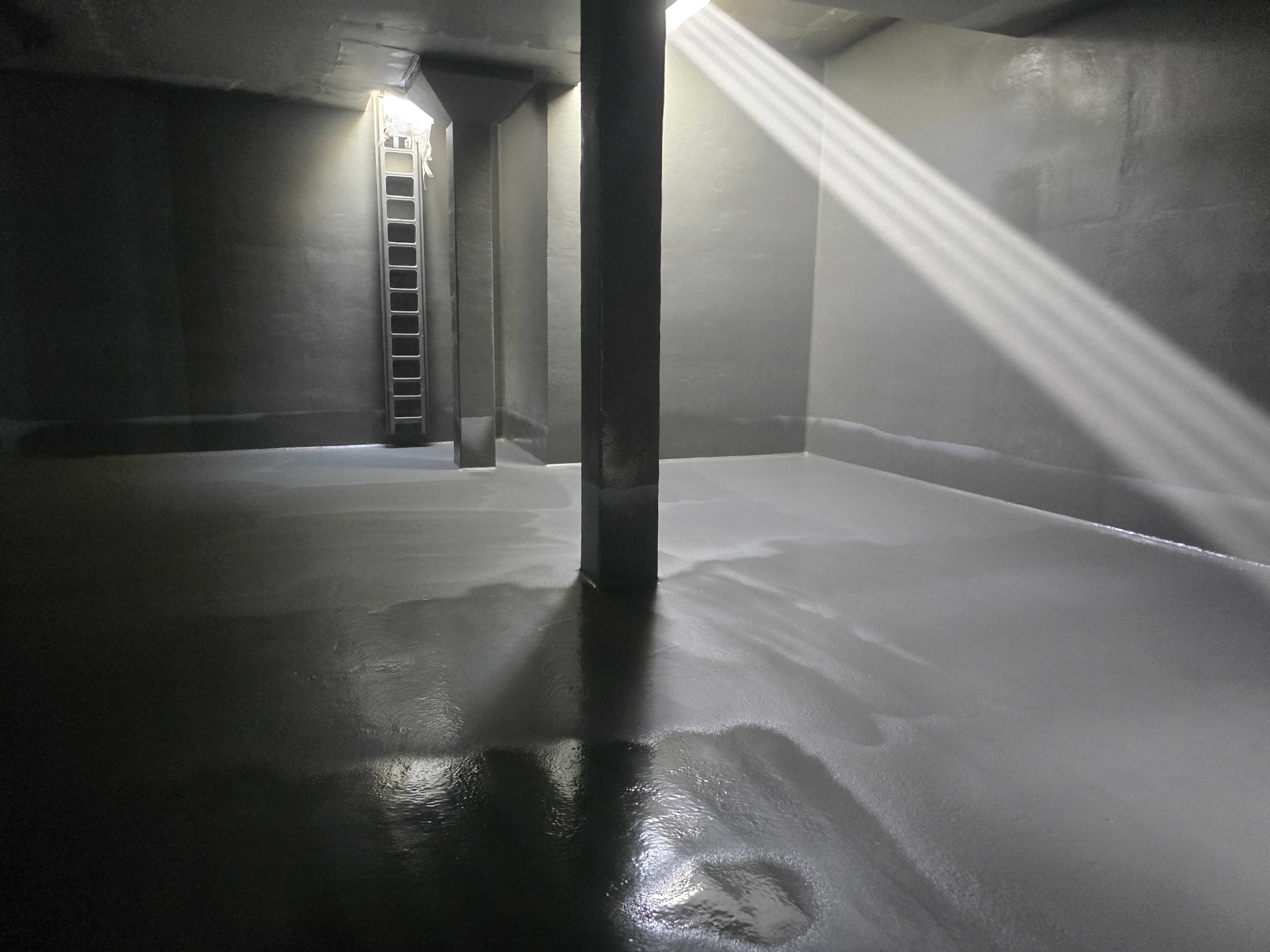

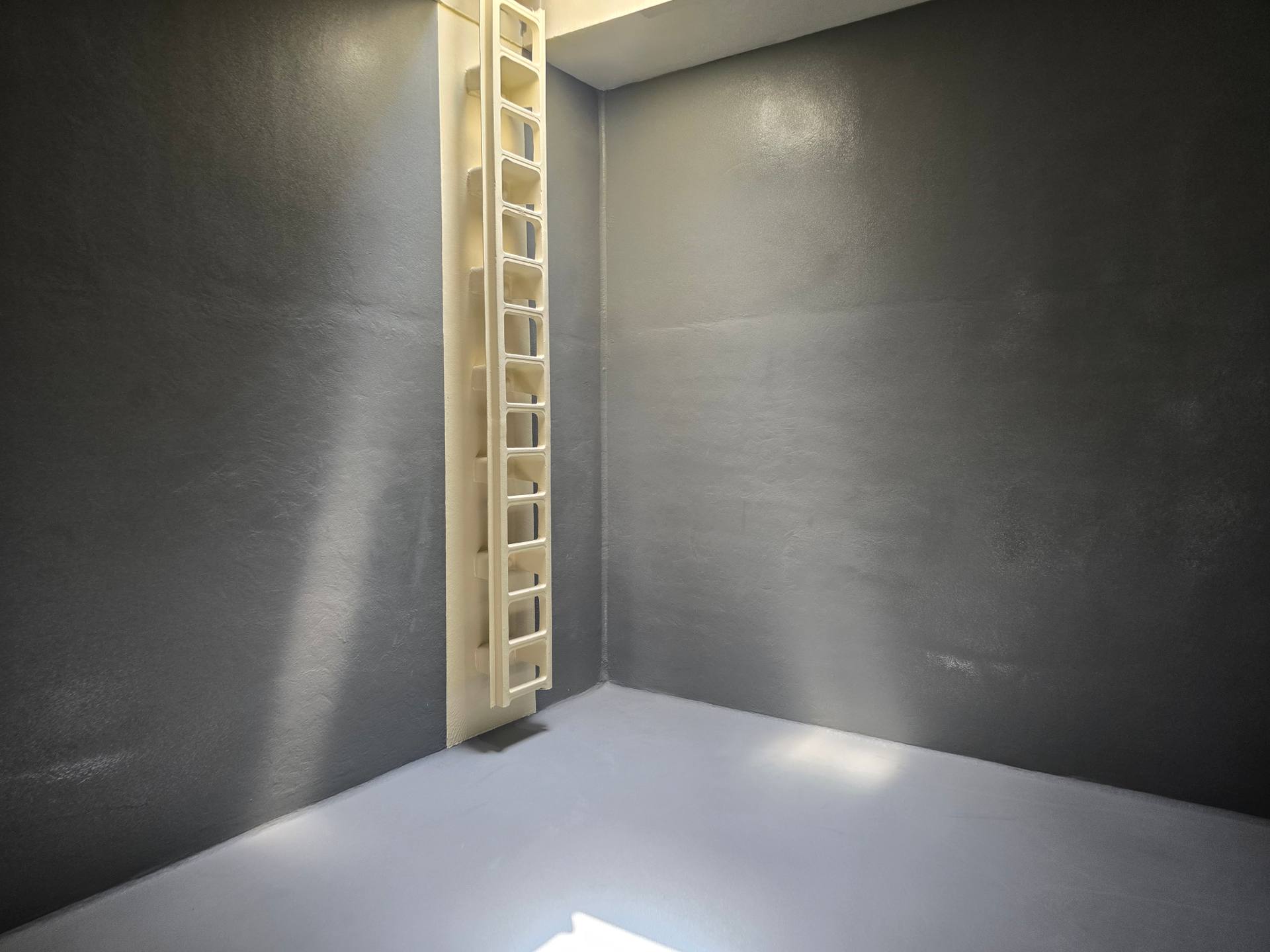

AfterAbu Dhabi, UAE
Stage by stage
Before

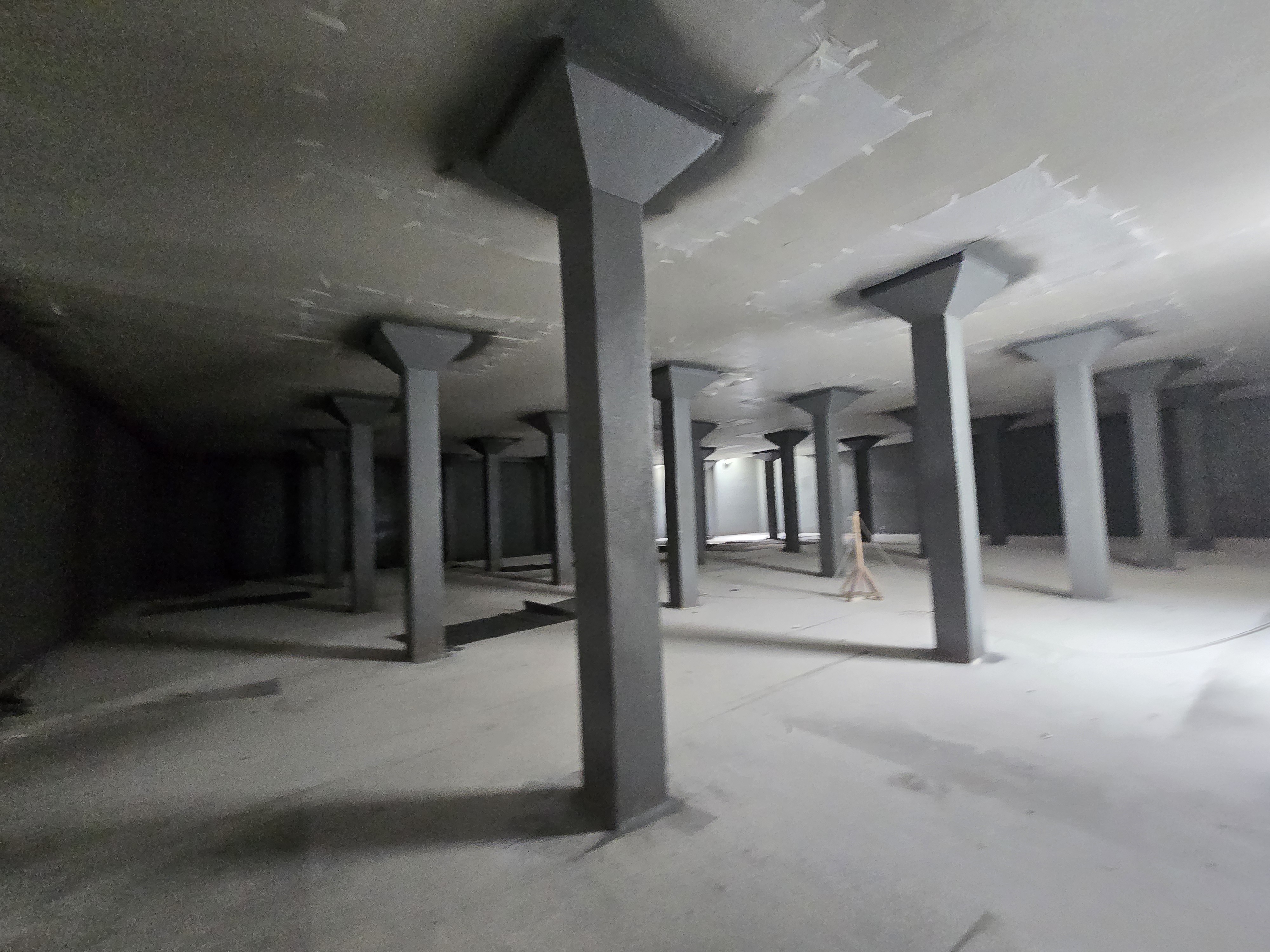

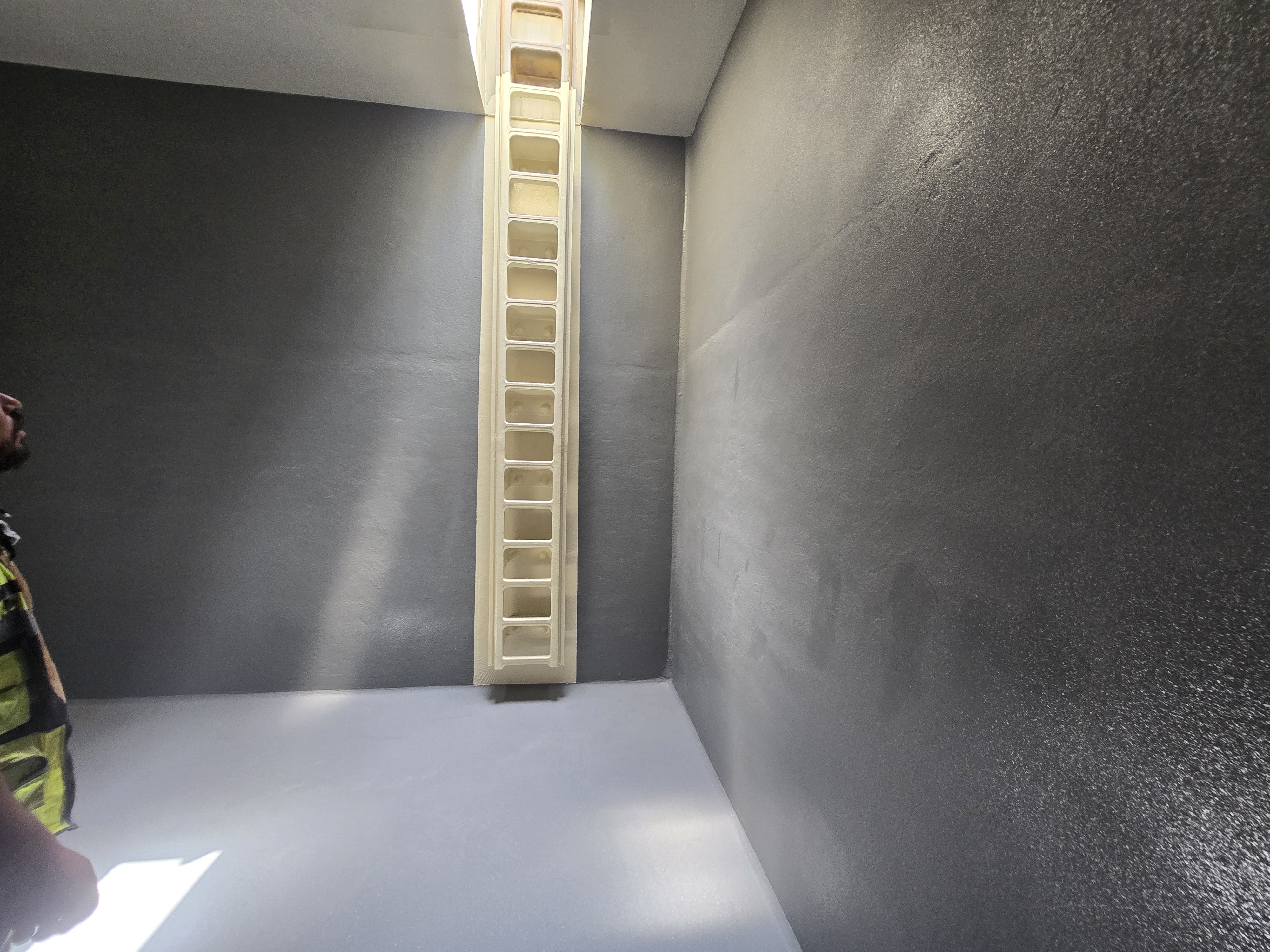

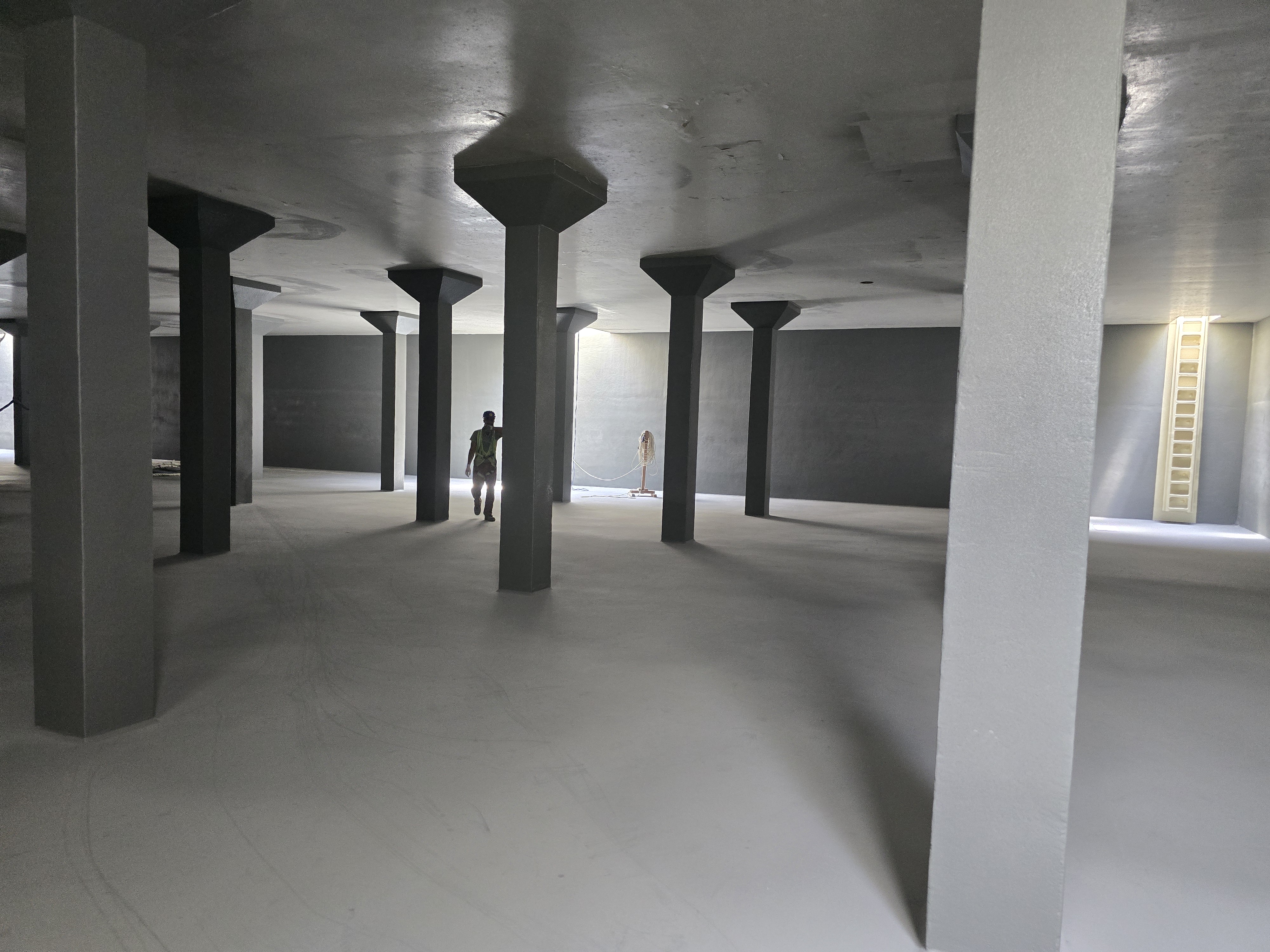

After

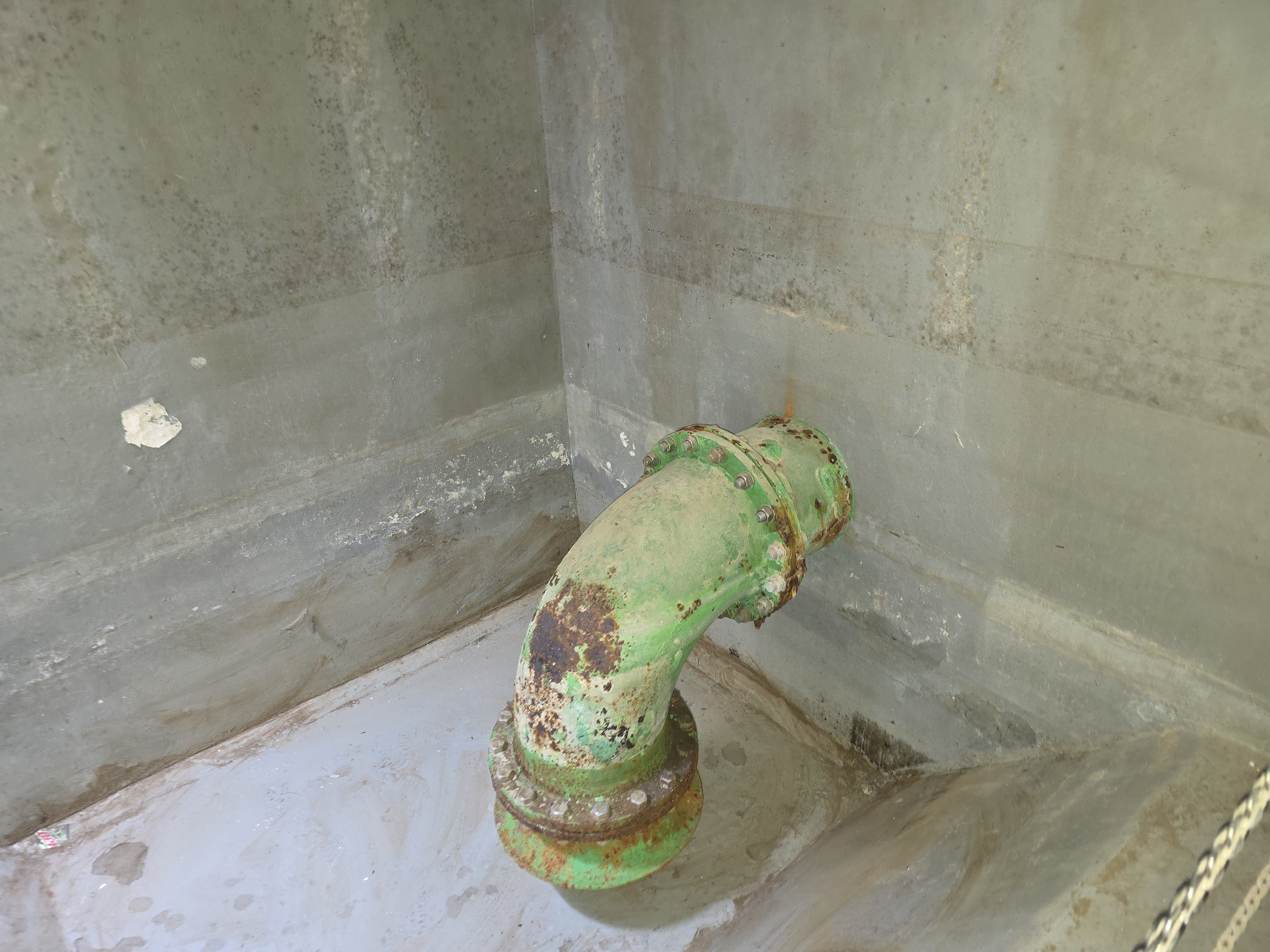

Before

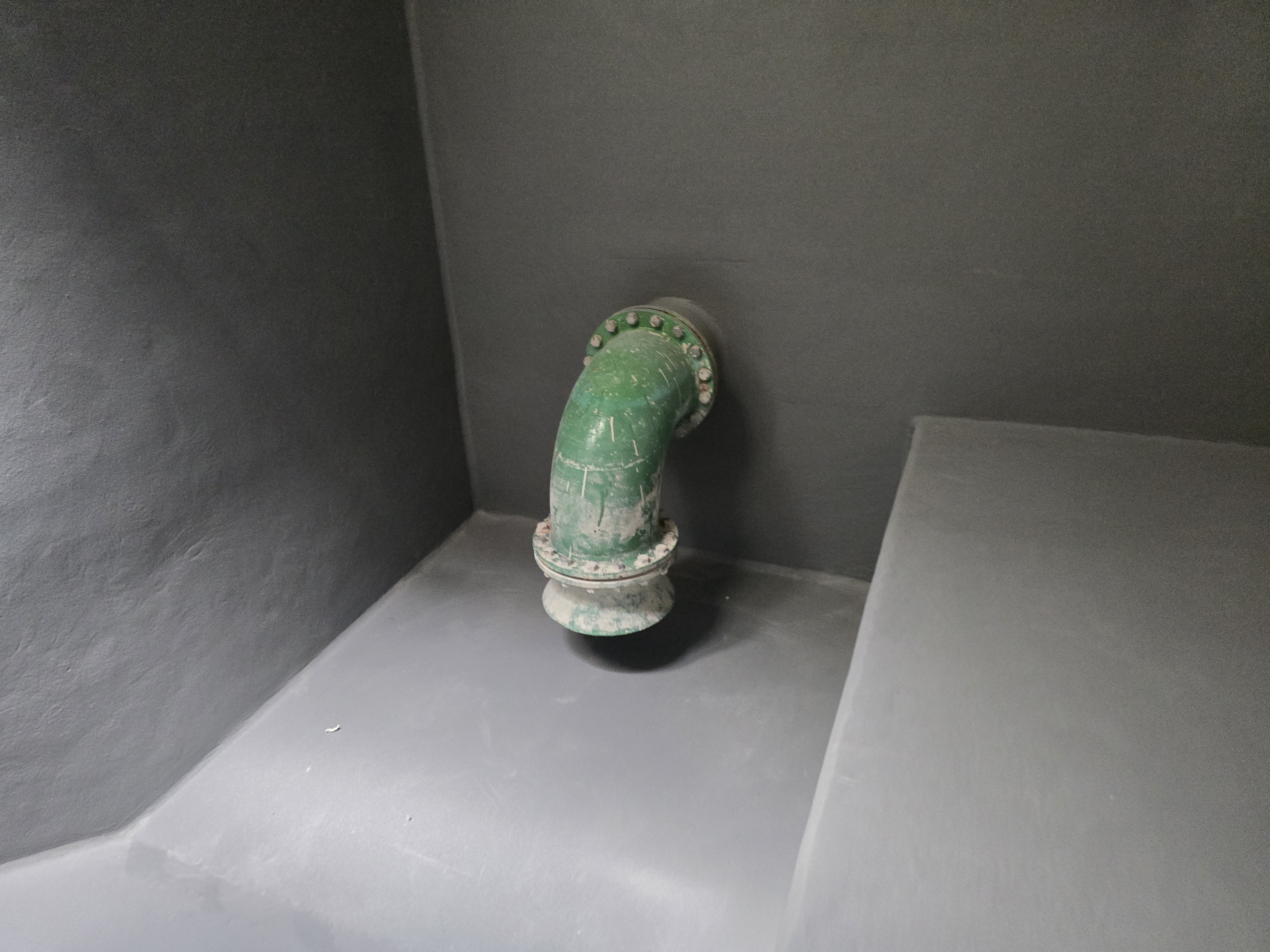

AfterOn-site photography
