Pile Head Waterproofing Treatment UAE
Crystalline and epoxy treatment of exposed pile heads.
Service line
Waterproofing
Region
United Arab Emirates
OVERVIEW
Pile Head Treatment
Pile head treatment seals the interface between cut-off pile heads and the raft slab using crystalline waterproofing, epoxy bonding, and detailing systems that prevent water ingress through reinforcement and construction joints.
Application methodology
A three-step system for a watertight pile-to-raft interface.
Every pile head is treated in the same disciplined sequence — re-profile, seal, then encapsulate — so the detail is repeatable across hundreds of piles per site.
STEP 01Re-profiling
Non-shrink repair mortar
Cut-off pile heads are chipped back to sound concrete, reinforcement is cleaned, and the surface is reshaped with a polymer-modified non-shrink repair mortar. This restores a level, dense substrate and corrects any honeycombing before waterproofing.
STEP 02Sealing
Waterproofing bituminous membrane

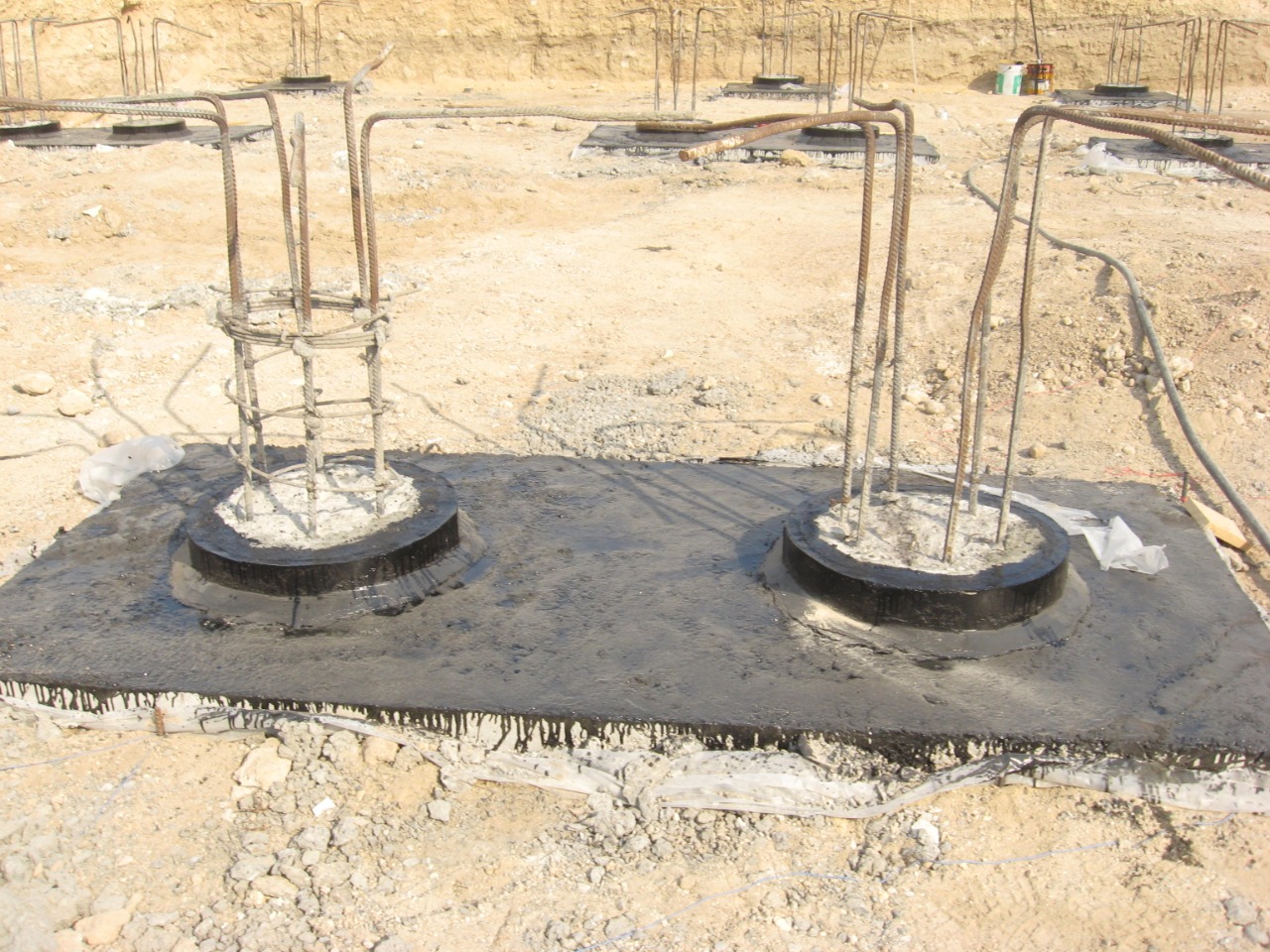

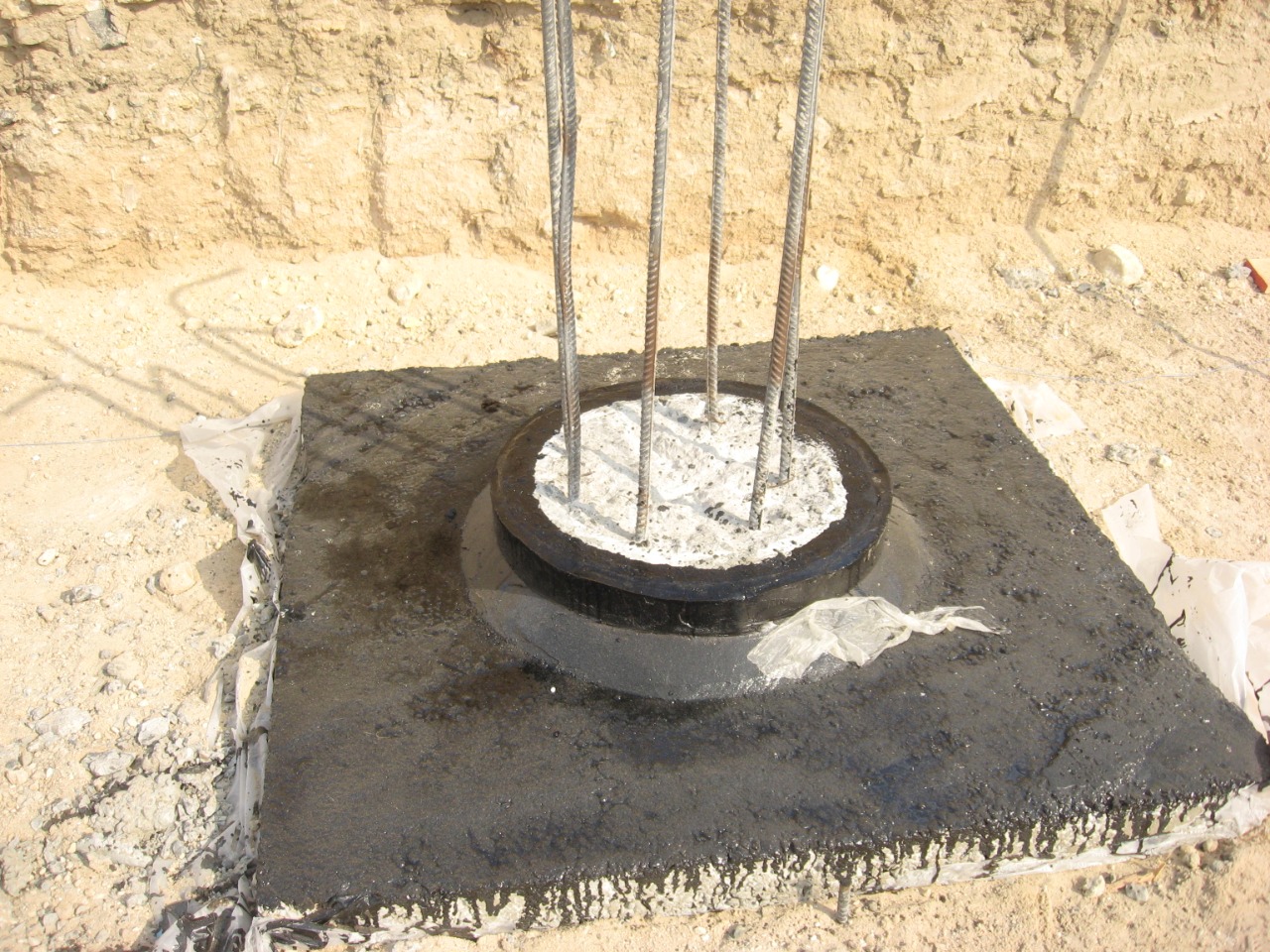

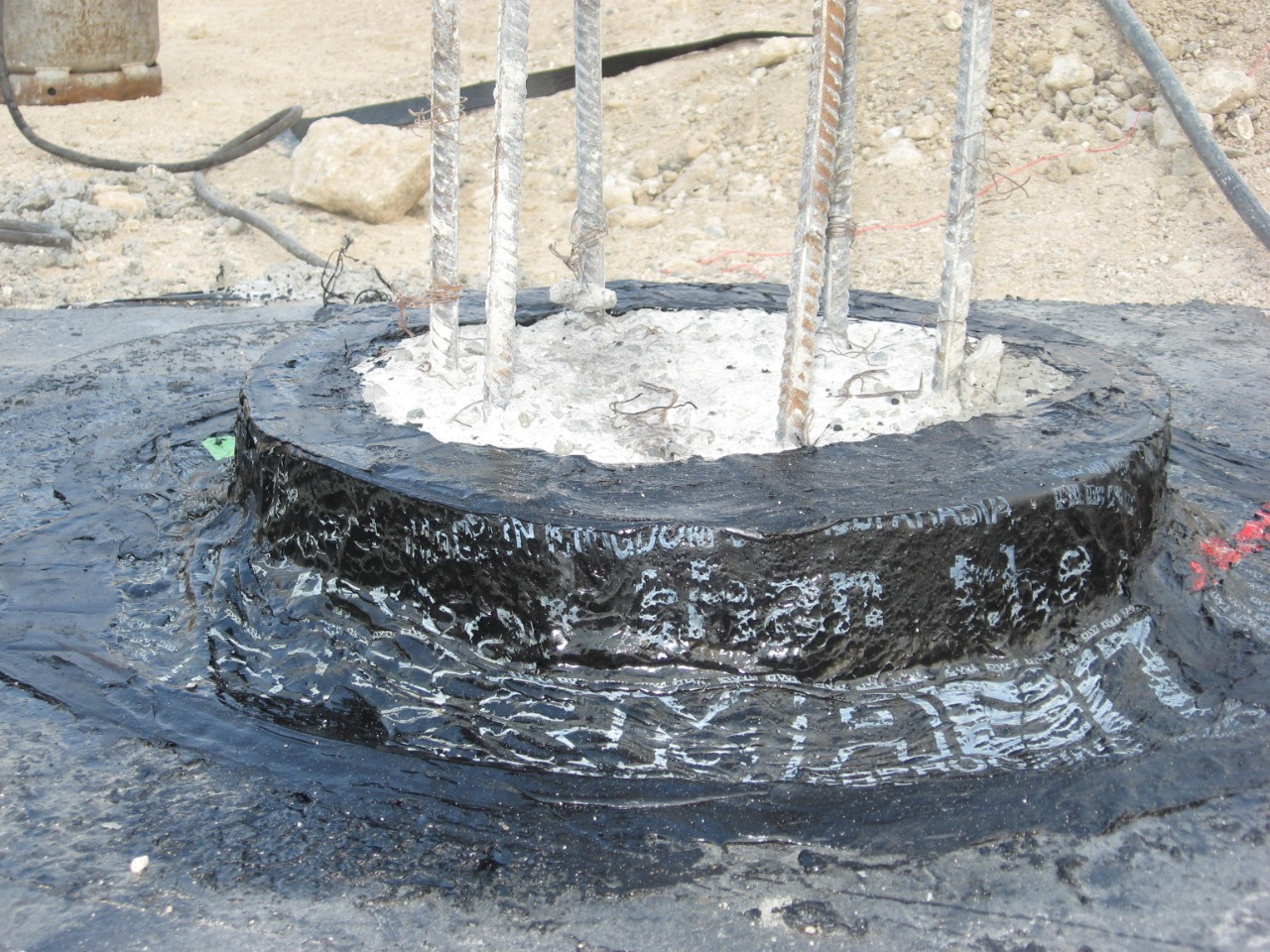

A self-adhesive or torch-applied bituminous membrane is wrapped over the re-profiled pile head and lapped onto the surrounding blinding. The membrane forms the primary watertight barrier against rising groundwater and lateral hydrostatic pressure.
STEP 03Encapsulation
Non-shrink epoxy-based mortar
The sealed head is fully encapsulated with a non-shrink epoxy-based mortar, locking the membrane in place and protecting it from mechanical damage during rebar fixing and raft pour. The result is a monolithic, chemical-resistant interface between pile and raft.
Typical applications
Where pile head treatment delivers value.
Specified on infrastructure, industrial, and commercial assets across the UAE — wherever long-term performance and uptime matter.
02Industrial
Underground car parks
03Civil
Tunnels and metro structures
04Water
Tank and reservoir foundations
05Building
High-rise tower podiums

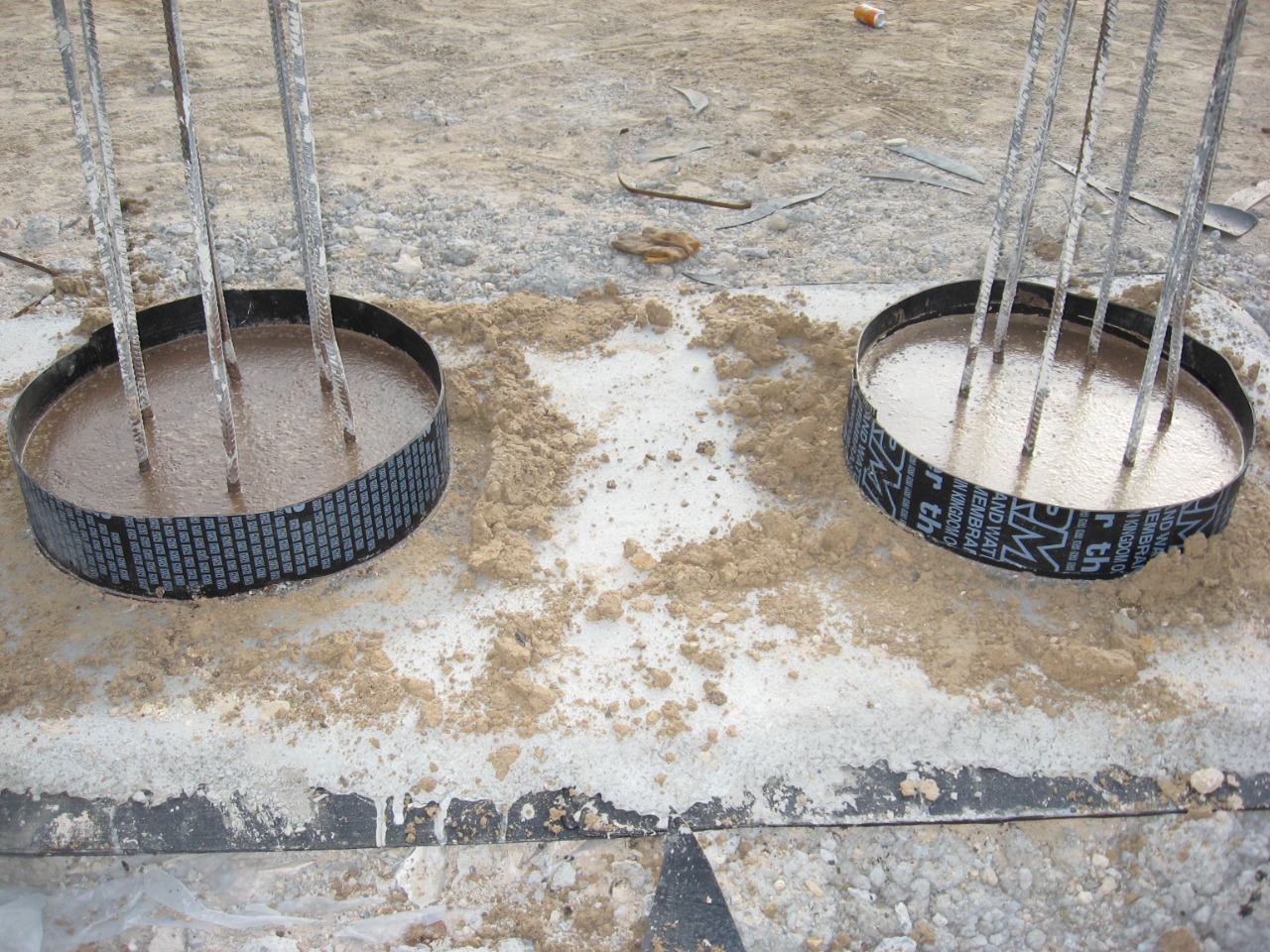

TEXSA at site

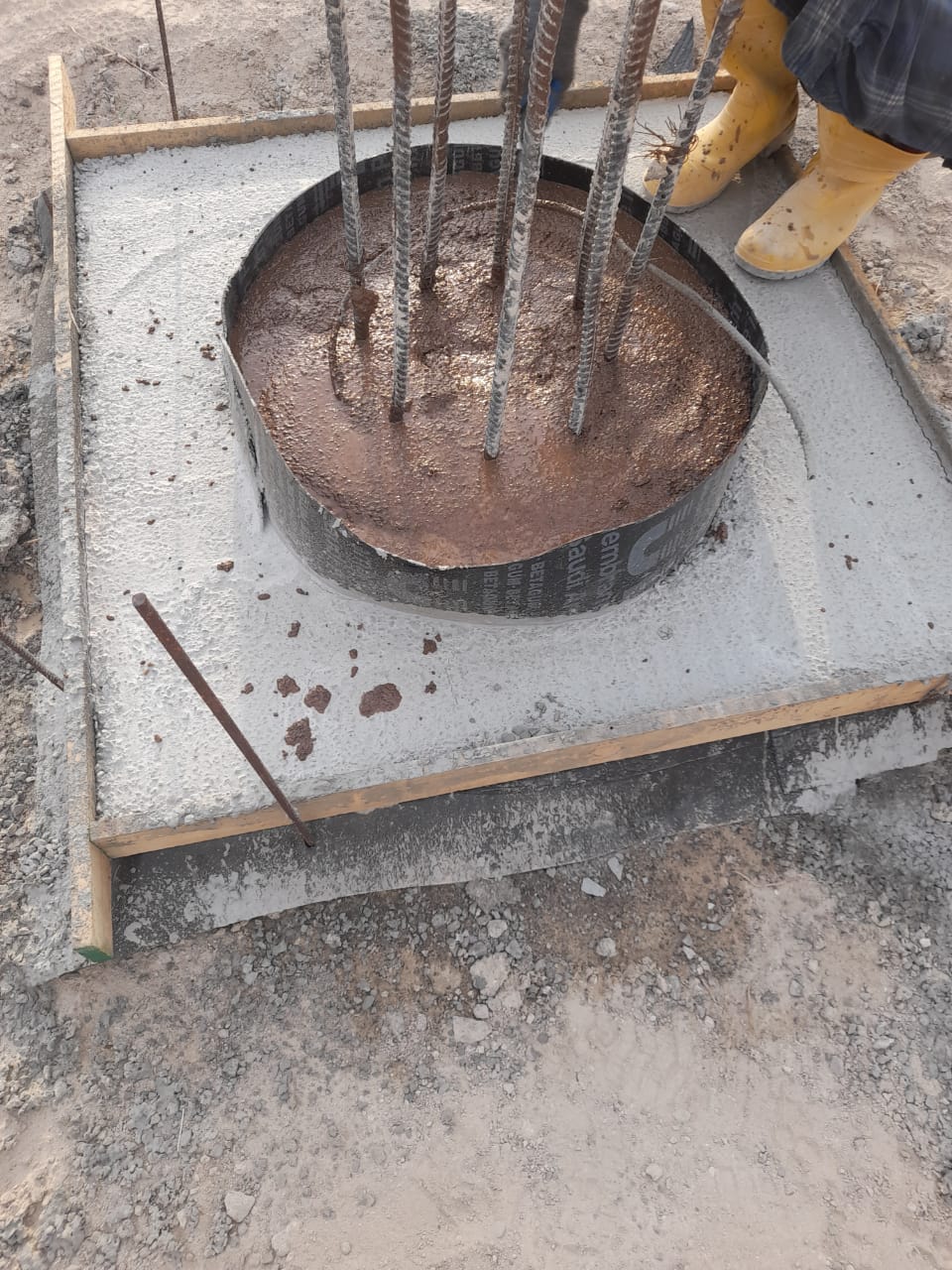

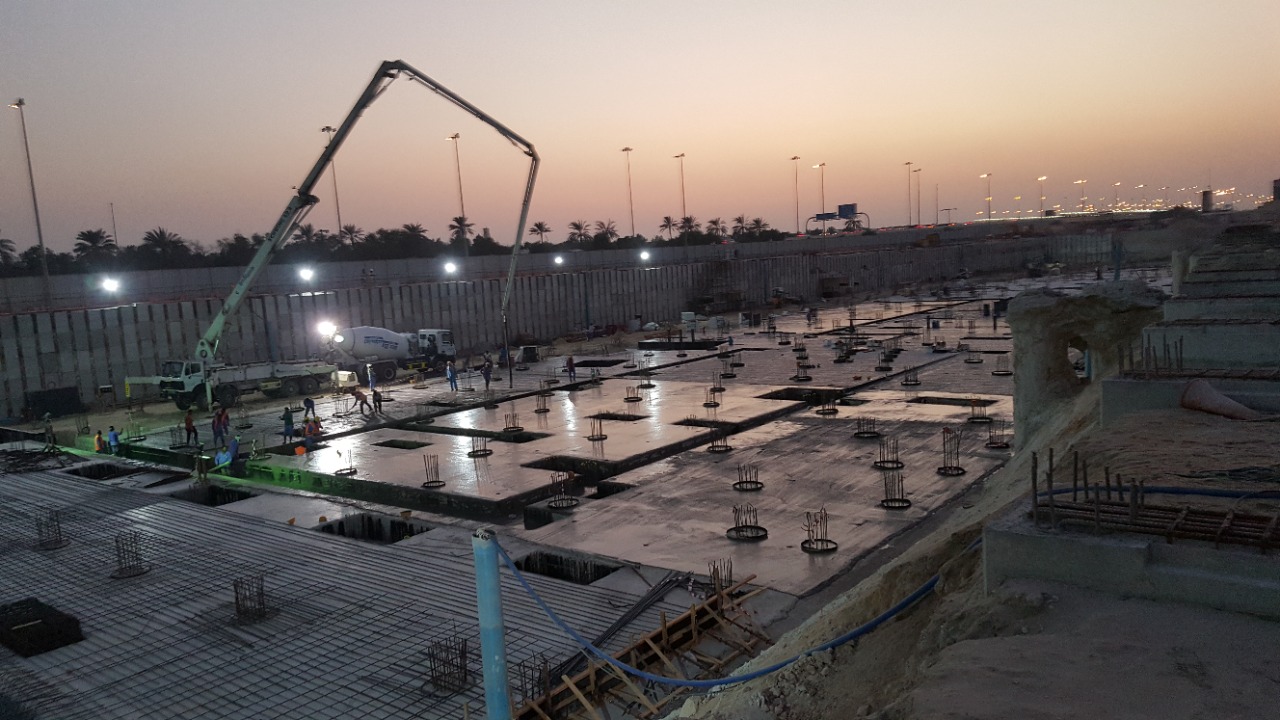

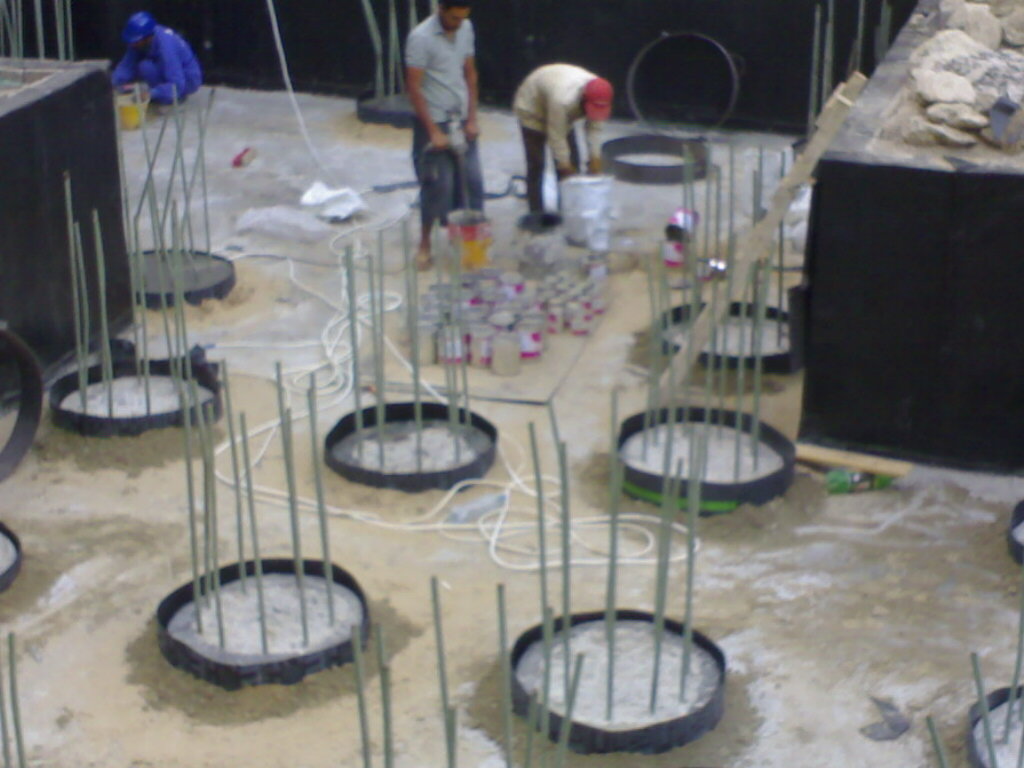

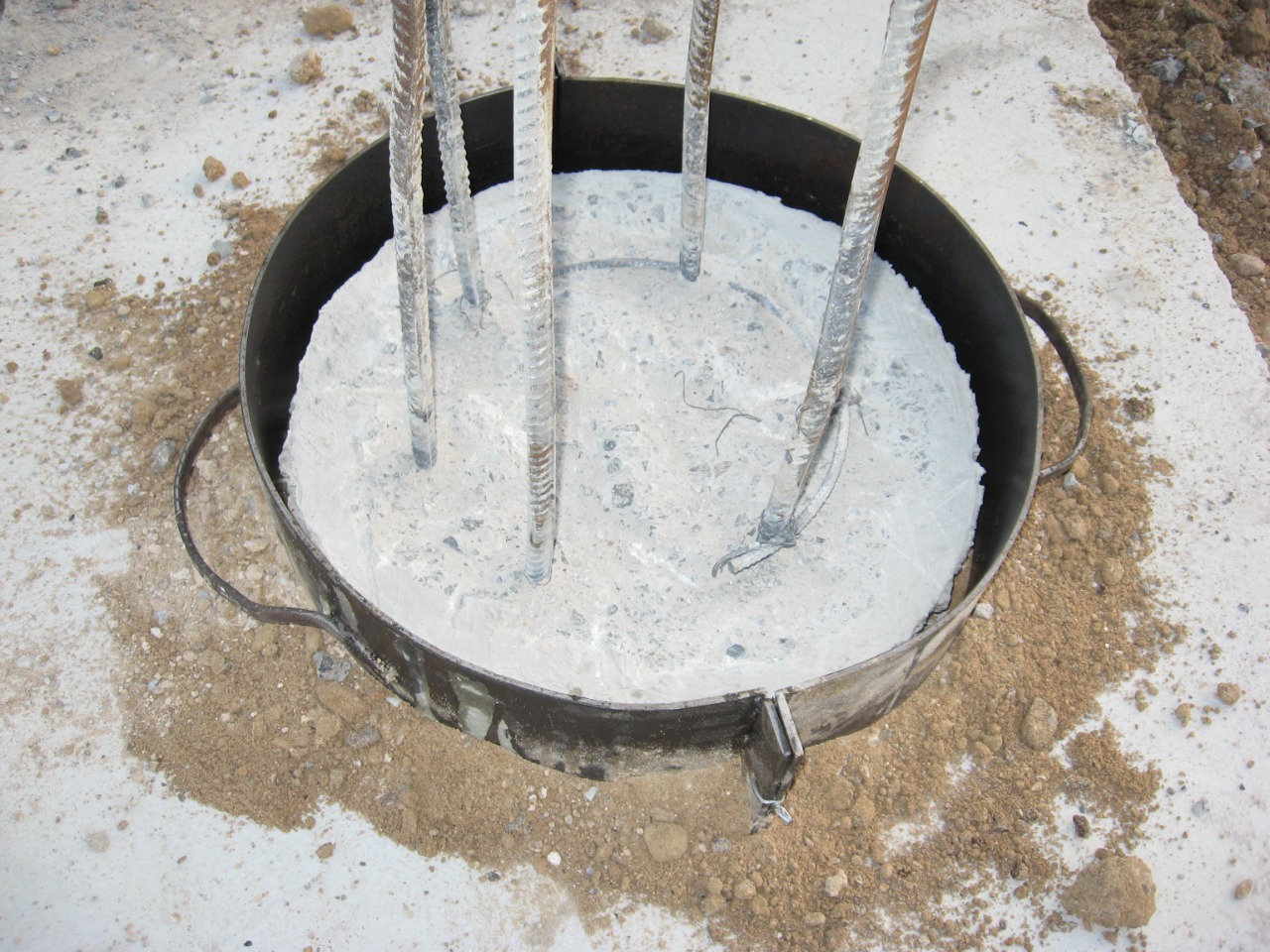

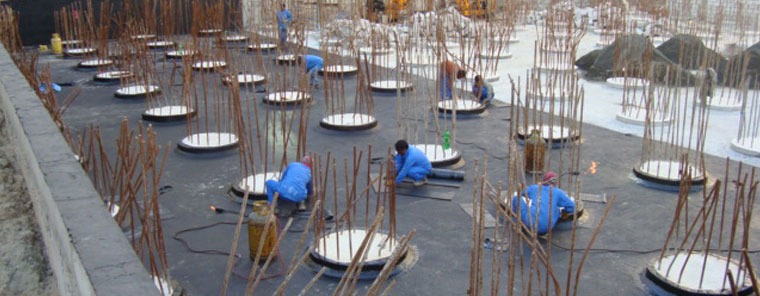

Pile Head Treatment — on the ground in the UAE
Photographs from active TEXSA jobsites across the Emirates. Tap any image to enlarge.
Sectors servedInfrastructureIndustrialCommercialGovernmentMarine
Reference projects
View all projects Recently delivered in the UAE.
Infrastructure
Waterproofing · 2024
Municipal Irrigation Reservoir Rehabilitation
Strip-out of failed lining, substrate repair, and 3 mm pure polyurea internal lining.
Abu Dhabi 2024
Commercial
Waterproofing · 2023
Mixed-Use Tower Podium Waterproofing
Podium and planter waterproofing under landscaped overburden.
Abu Dhabi 2023
Related systems
Other waterproofing systems to specify.
Trusted partners
Material & system partners we specify with.
UAE coverage
Pile Head Treatment contractor across the UAE.
Crews mobilised from our Abu Dhabi and Dubai bases — same-week attendance across every emirate.
Abu DhabiDubaiSharjahAjmanUmm Al QuwainRas Al KhaimahFujairahAl Ain
Frequently asked
Pile Head Treatment — answered.
Common questions from UAE consultants, clients and contractors. Need something specific? Speak with our technical team.
After pile cut-off and before raft waterproofing — sequenced with the main contractor's slab programme to avoid delays.
